Valve & Pressure Instrument Accessories
At Nasha Automation, we provide a wide range of Valve & Pressure Instrument Accessories that support the efficient and reliable operation of industrial instrumentation systems. These accessories are essential for enhancing the performance, safety, and longevity of pressure and flow measurement instruments in process control applications. Our products are designed to meet the stringent requirements of industries like petrochemicals, chemical processing, power generation, and water treatment.

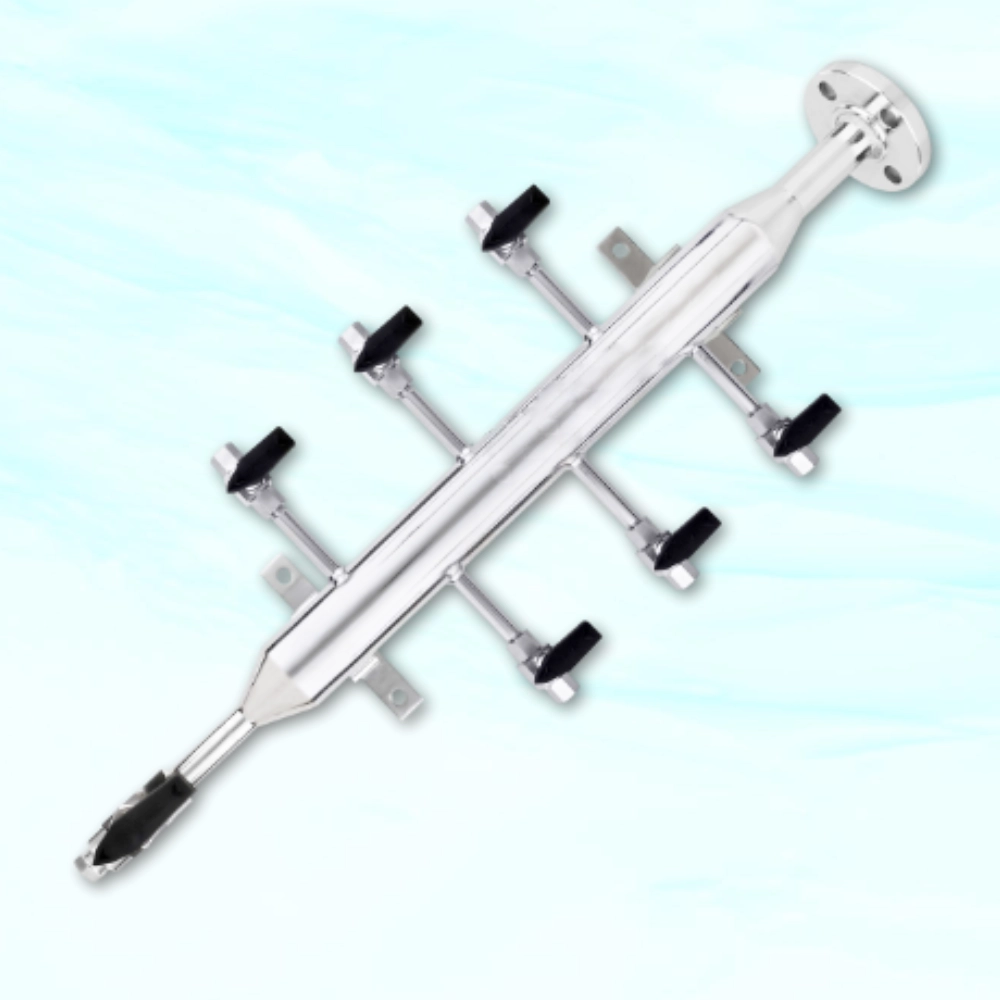

Air Header
At Nasha Automation, our Air Header serves as the central hub & backbone for compressed air distribution across your plant. Designed to ensure seamless & reliable airflow, it takes compressed air from a single source & distributes it efficiently to multiple points of use. Think of it as your plant’s circulatory system, delivering consistent air pressure to every instrument & system, ensuring optimal performance & reliability.
Technical Specification
| Specification | Details |
|---|---|
| END CONNECTIONS | Tube OD/ Female Pipe Threads/ Male Pipe Threads |
| TEST PRESSURE | Standard 300 psi (High Pressure Test offered) |
| TO DISTRIBUTE COMPRESSED AIR | |
| TUBE OD SIZE | Tube OD from 1/4" OD to 1" OD (Fractional) From 6mm OD to 25mm OD (Metric) |
| PIPE THREAD SIZE | 1/8" to 2" Threads (NPT/ BSPP/ BSPT/ ISO/ Metric) |
| HEADER PIPE SIZE | From 1" to 4" (Seamless or ERW) Pipe |
| THICKNESS | As Per Spec such as Sch.40/ Sch.80/ Sch.160/ C Class |
| INLET |
A) RF/ FF Flange (ANSI B 16.5) ½” to 3” or B) With Threaded Ball Valve Size ½” to 2” or C) With Flange & Threaded Ball Valve Both or D) With Flanged Ball Valve E) With Three Piece Union |
| OUTLET/ DRAIN |
A) Needle Valves (CS/ Brass/ SS304/ SS316 etc.) B) Ball Valves (CS/ Brass/ SS304/ SS316 etc.) C) Pipe Male/ Female Open Threads |
| OPPOSITE SIDES OUTLET | Parallel or Zig- Zag. Distance between Two outlets to be specified. |
| PATTERN | Outlet Nipple Length to be specified. |
| MOUNTING | Mounting Plates/ Brackets/ U Clamps |
| TAG PLATES | Header Tag Plates & Instrument Tag Plates arrangement along with Laser Marked SS Tag Plates upon request. |

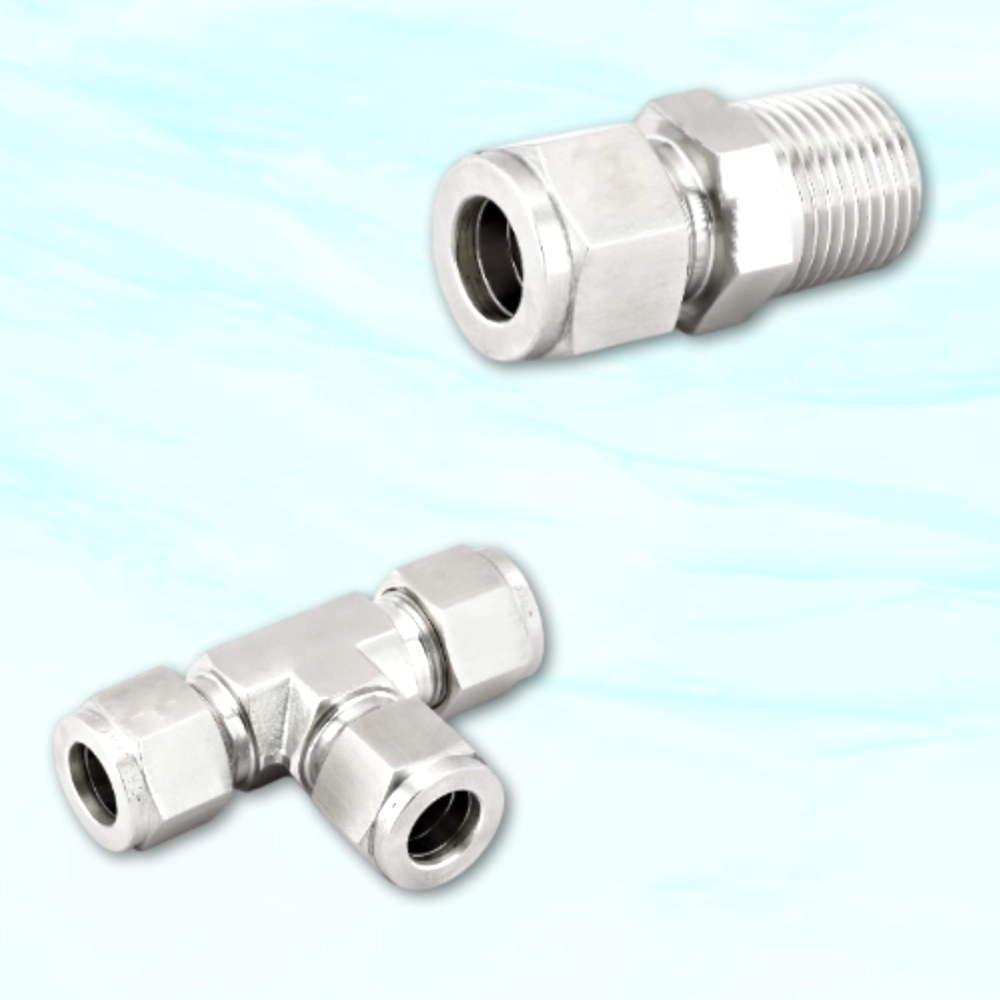

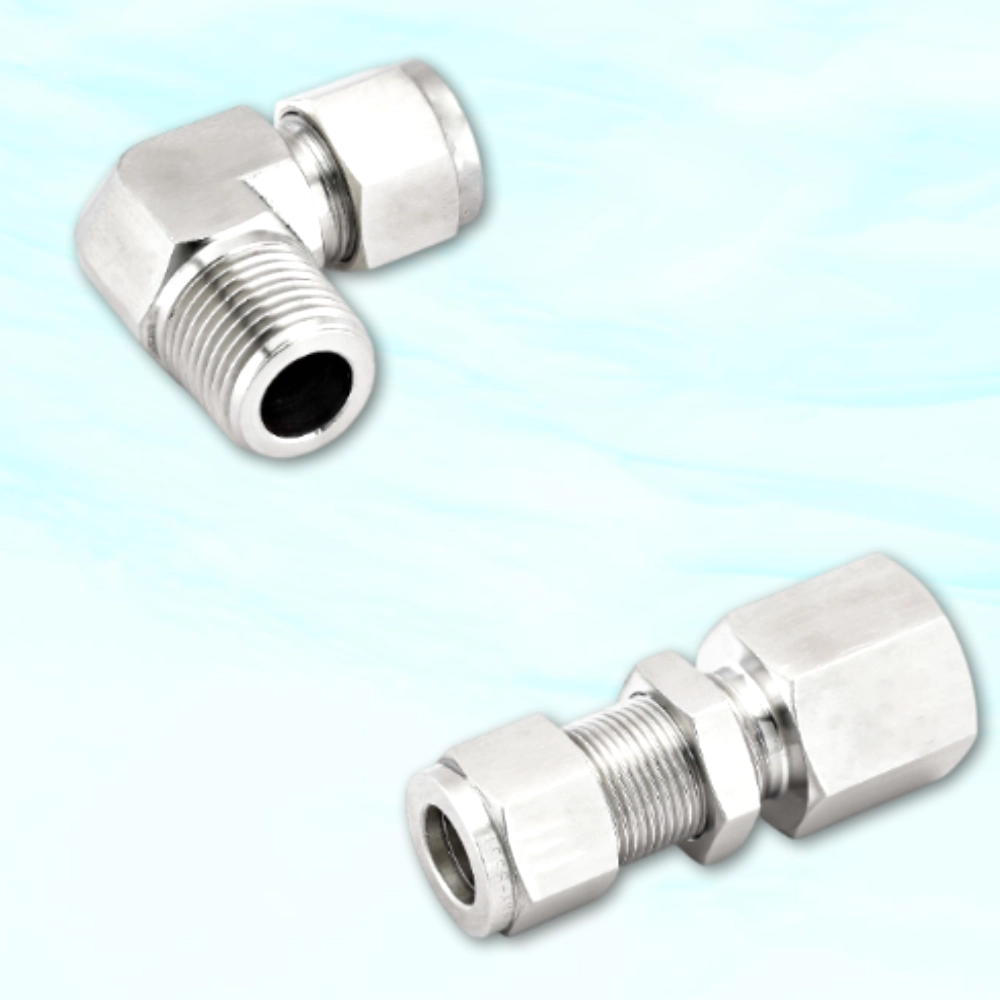

Tube Fittings and Adaptor
At Nasha Automation, we provide a comprehensive range of Tube Fittings and Adapters that are essential for creating secure, leak-free connections in process control systems. These fittings and adapters are designed to join various components in instrumentation systems, enabling the smooth flow of gases, liquids, and other fluids in industries like petrochemical, chemical, food processing, and pharmaceutical sectors.
Technical Specification
| Specification | Details |
|---|---|
| Material | Stainless Steel, Brass, Nickel-Plated Alloys |
| Pressure Rating | Up to 6000 psi (depending on fitting type) |
| Temperature Range | -65°F to 450°F (-53°C to 232°C) |
| Fitting Type | Compression, Push-to-Connect, Swagelok, Elbow, Bulkhead, Tee, Union, Reducer |
| Seal Type | O-Ring, PTFE, Metal-to-Metal |
| End Connections | Male/Female NPT, BSPT, BSPP, Swagelok, Flare, Push-to-Connect |
| Compatibility | Compatible with a variety of tubing materials including Stainless Steel, Copper, PTFE, and PVC |
| Installation | Tool-free installation (for most types), quick and easy to connect and disconnect |
| Applications | Fluid and gas transfer, pressure and flow control, pneumatic systems, hydraulic systems |
| Standards Compliance | ISO, ASTM, ASME, CE |

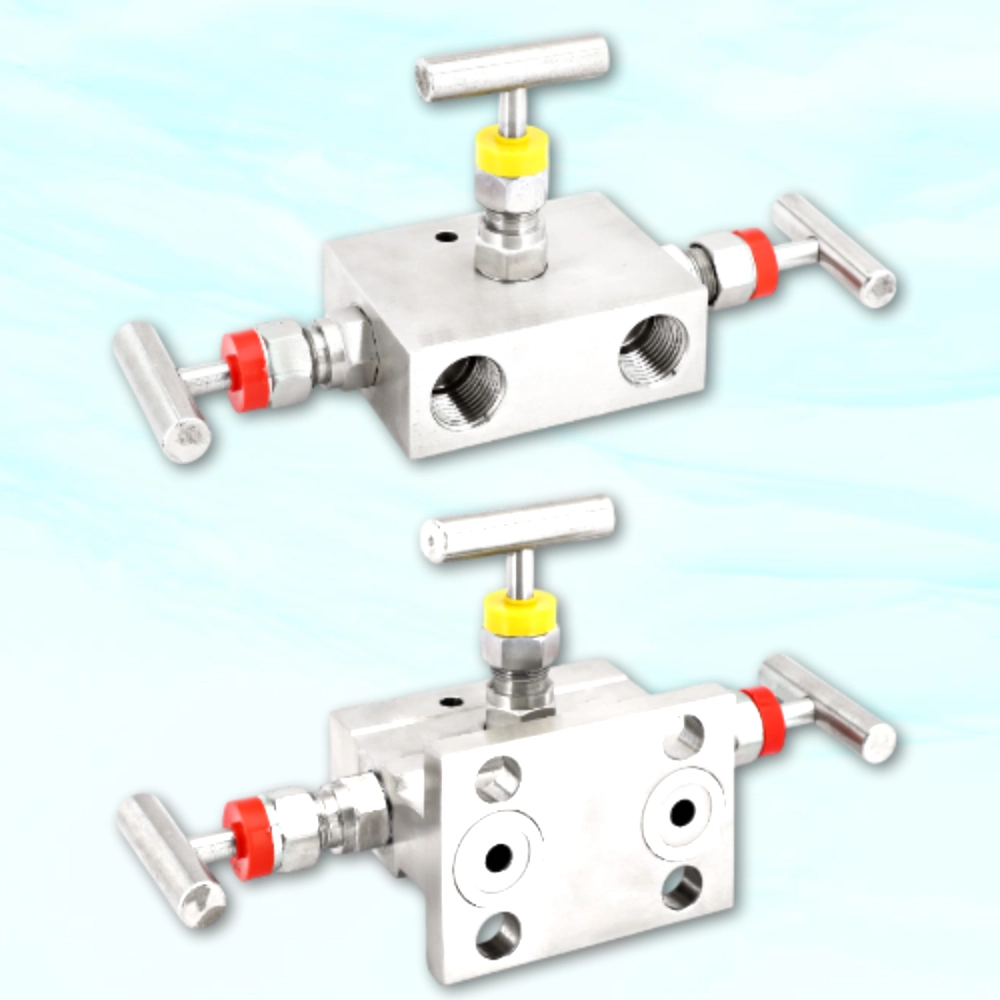

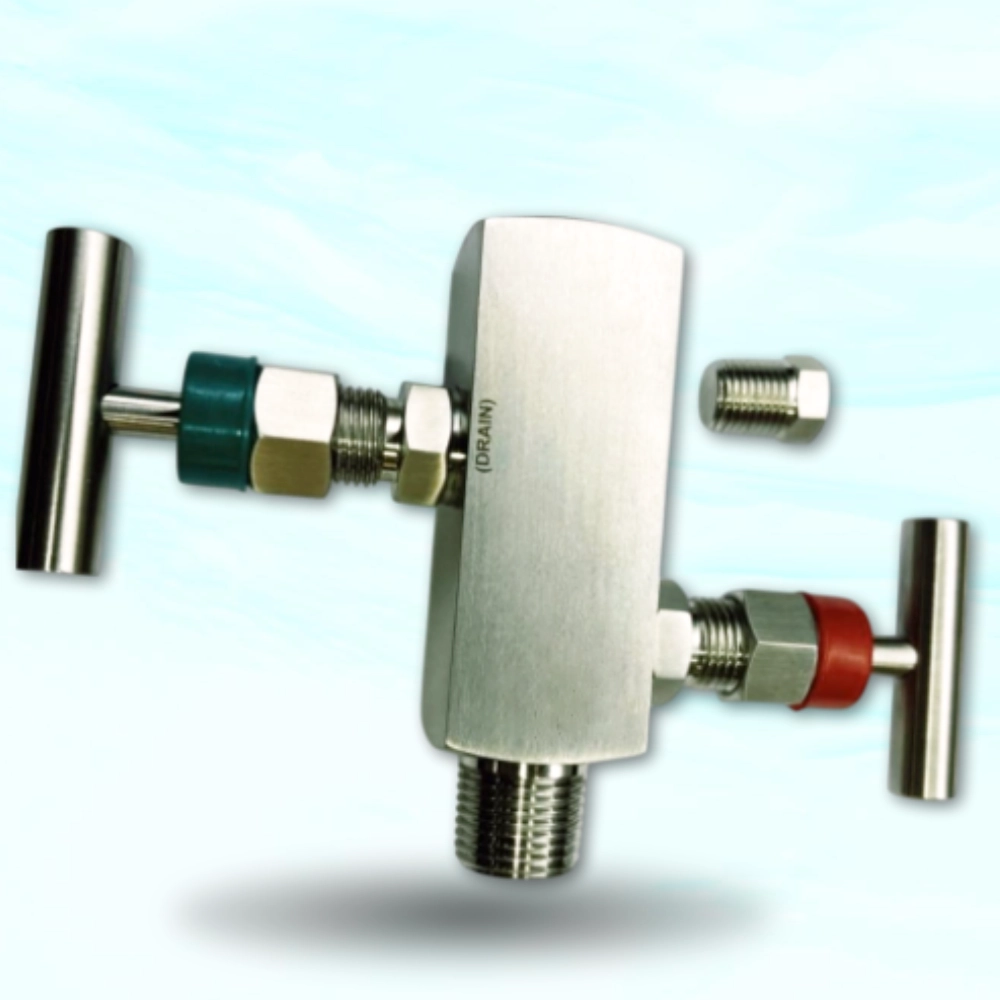

PT, DPT Manifold
At Nasha Automation, we provide a range of high-quality PT (Pressure Transmitter) and DPT (Differential Pressure Transmitter) Manifolds that are essential for ensuring accurate and reliable pressure measurement in industrial systems. These manifolds are designed to support pressure transmitters and differential pressure transmitters, providing robust connections and enabling effective isolation and calibration of the measurement devices.
Technical Specification
| Specification | Details |
|---|---|
| Material | Stainless Steel, Carbon Steel, Brass |
| Valve Type | Block Valve, Bleed Valve, Vent Valve |
| Connection Type | Threaded (NPT, BSPT, BSPP), Flanged, Clamp |
| Max Pressure | 6000 psi (varies based on model) |
| Temperature Range | -40°F to 300°F (-40°C to 150°C) |
| Seal Type | O-Ring, PTFE, Metal-to-Metal |
| Mounting Type | Panel, Direct Mount, Remote Mount |
| Size | 1/4" to 1/2" (depending on application) |
| Manifold Type | Single Valve, Two-Valve, Three-Valve, Differential Pressure Manifold |
| Applications | Oil & Gas, Petrochemical, Water Treatment, HVAC, Pharmaceuticals |
| Compliance | ASME, ISO, CE Standards |
| Customizable Features | Available in different materials, sizes, and configurations |

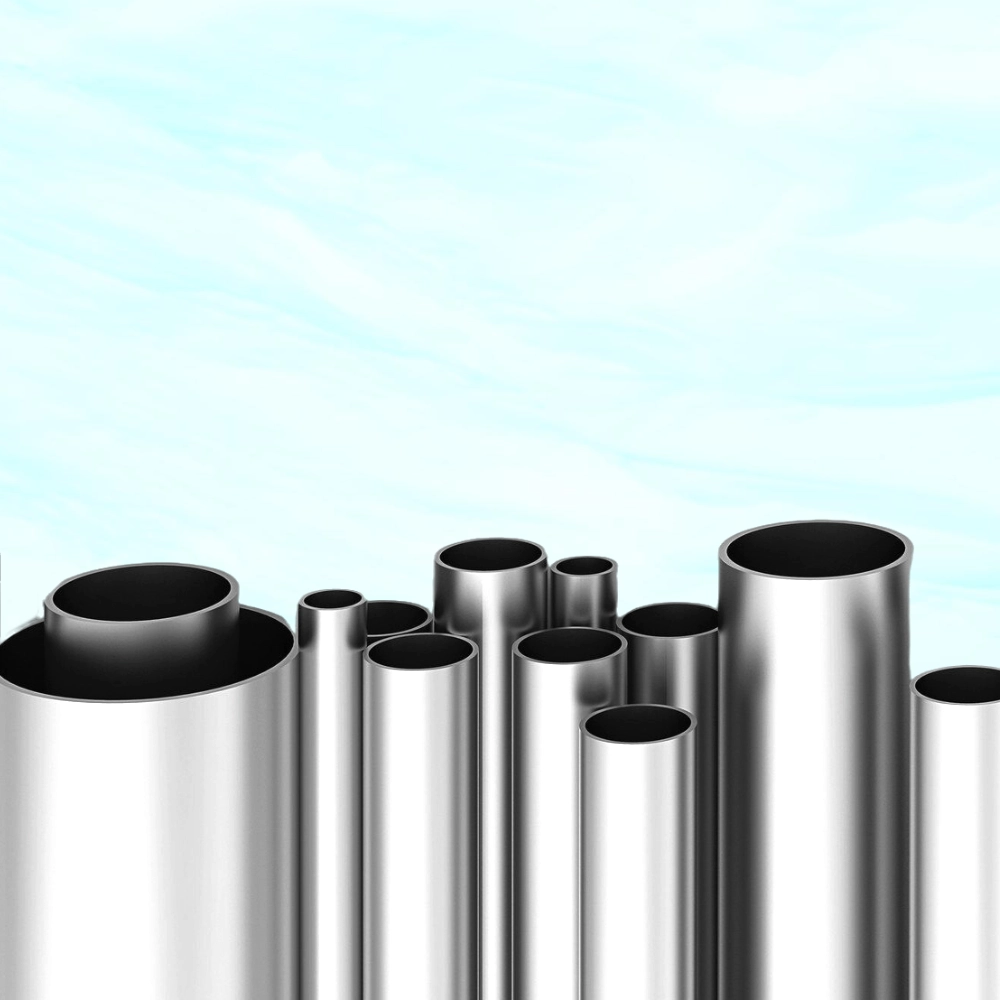

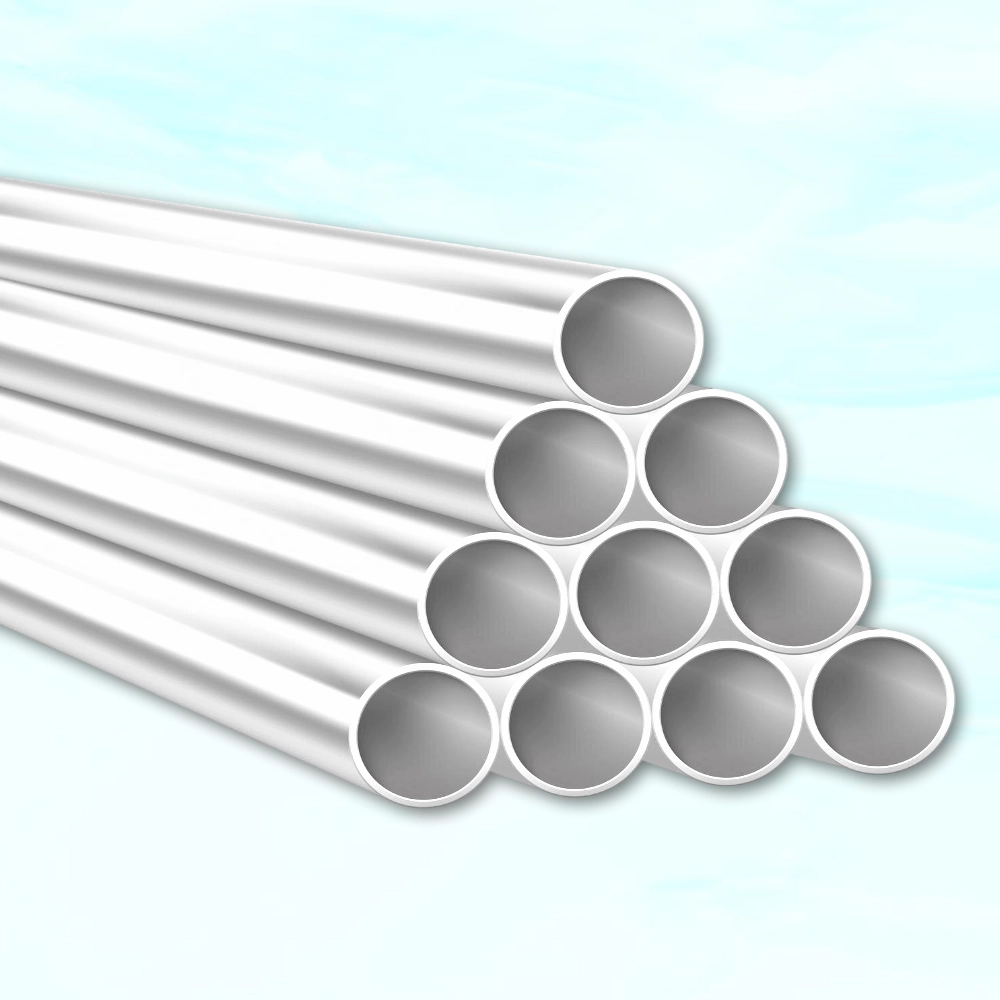

Instrument Tubes
At Nasha Automation, we offer a wide range of high-quality Instrument Tubes designed for use in process control systems and instrumentation applications. These tubes are essential for conveying fluids and gases to instruments such as pressure transmitters, pressure gauges, and temperature sensors, ensuring accurate readings and reliable performance in industrial environments.
Technical Specification
| Specification | Details |
|---|---|
| Material | Stainless Steel, Copper, Monel, Inconel, Plastic |
| Size | 1/8" to 2" (diameter) |
| Length | Customizable based on client requirements |
| Temperature Range | -40°F to 1000°F (-40°C to 537°C) depending on material |
| Pressure Rating | Up to 6000 psi depending on material and application |
| Connection Type | Threaded, Flanged, Push-Fit, Welded |
| Corrosion Resistance | Highly resistant to corrosion, especially stainless steel and Monel |
| Compliance | ISO, ASTM, ASME, CE standards |
| Applications | Oil & Gas, Petrochemical, Water Treatment, Pharmaceuticals, HVAC |
| Customization | Available in different materials, sizes, and lengths to meet specific requirements |
